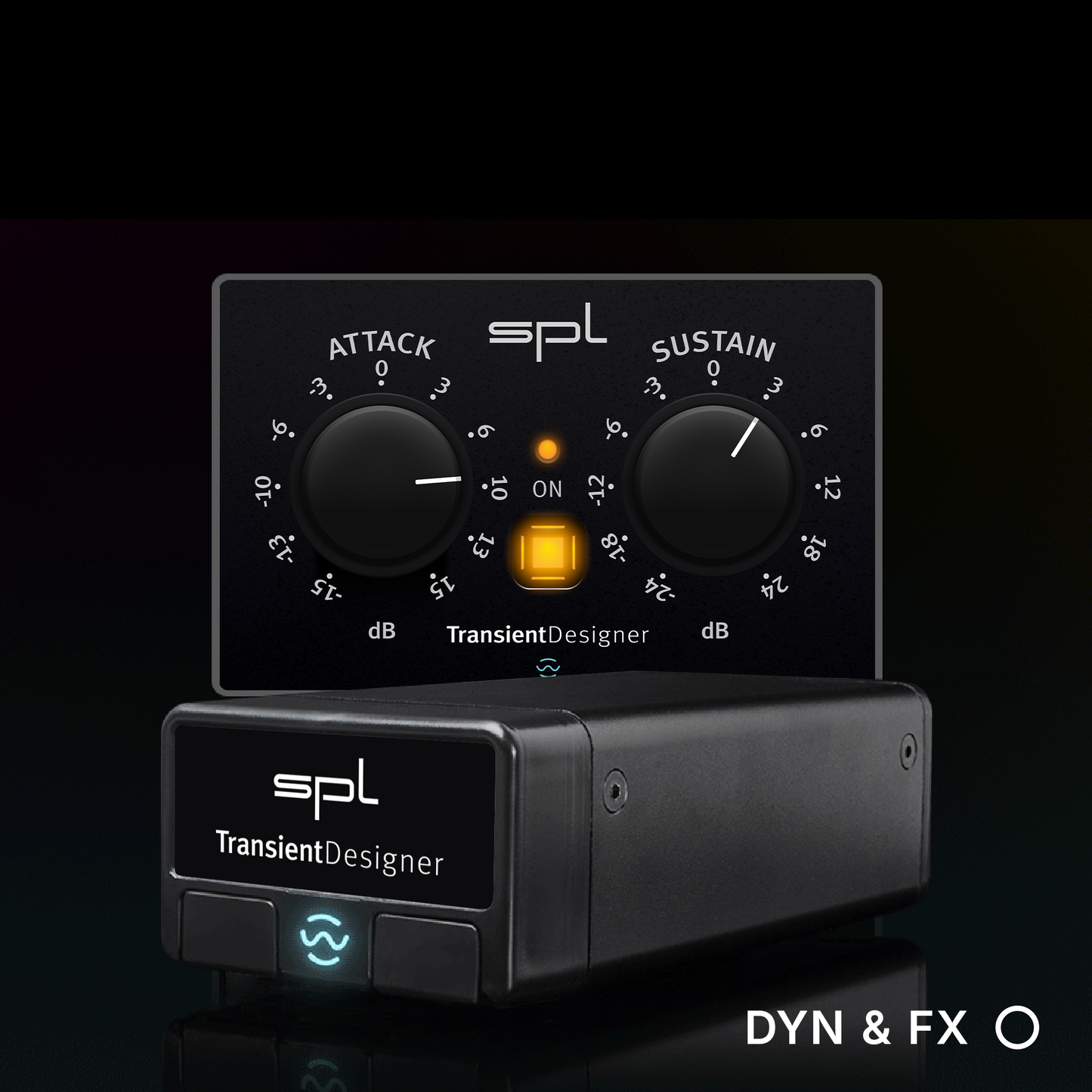

SPL Transient Designer SEPIA Module
SPL Transient Designer SEPIA Module
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
With the Transient Designer it is possible to manipulate the envelopes of audio signals level-independently with no threshold! Accelerate or slow down transients, lengthen or shorten sustain times – with just two controls: attack and sustain.
Share
Tech Specs
Tech Specs
• Channel Configuration: Mono
• Transient designer
• Input Impedance: 22 kΩ
• Output Impedance: 100 Ω
• Maximum Input Gain: 22 dBu
• Maximum Output Gain: 22.4 dBu
• Common mode rejection (1 kHz): 80 dBu
• Frequency Range: -3 dB, 10 Hz to 100 kHz
• THD + N (0 dBu, 10 Hz to 22 kHz): 0.004%
• Noise (A-weighted): -105 dBu
• Dynamic Range: 127.4 dB
• Power Rails: ±17 V DC
