Malcolm Toft

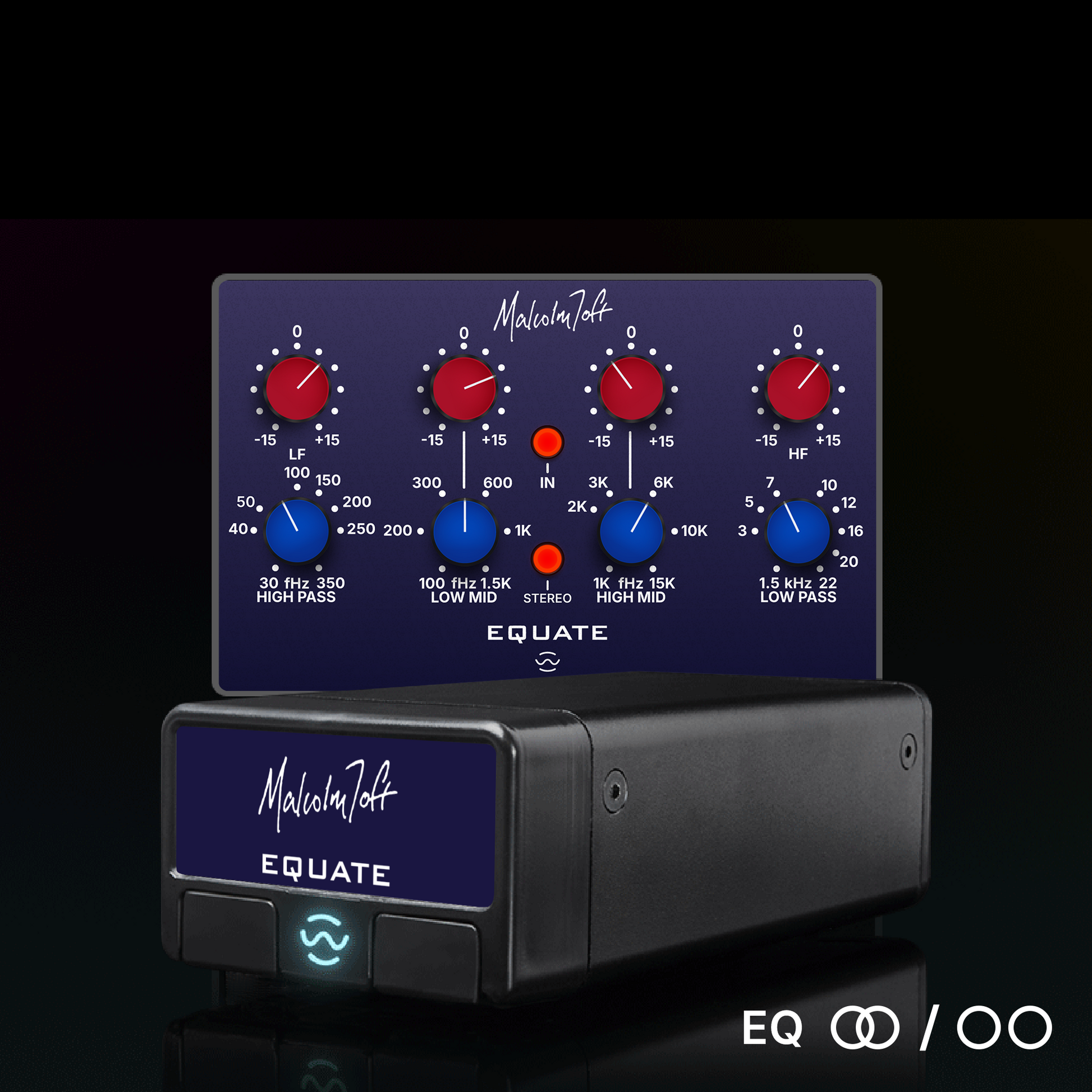

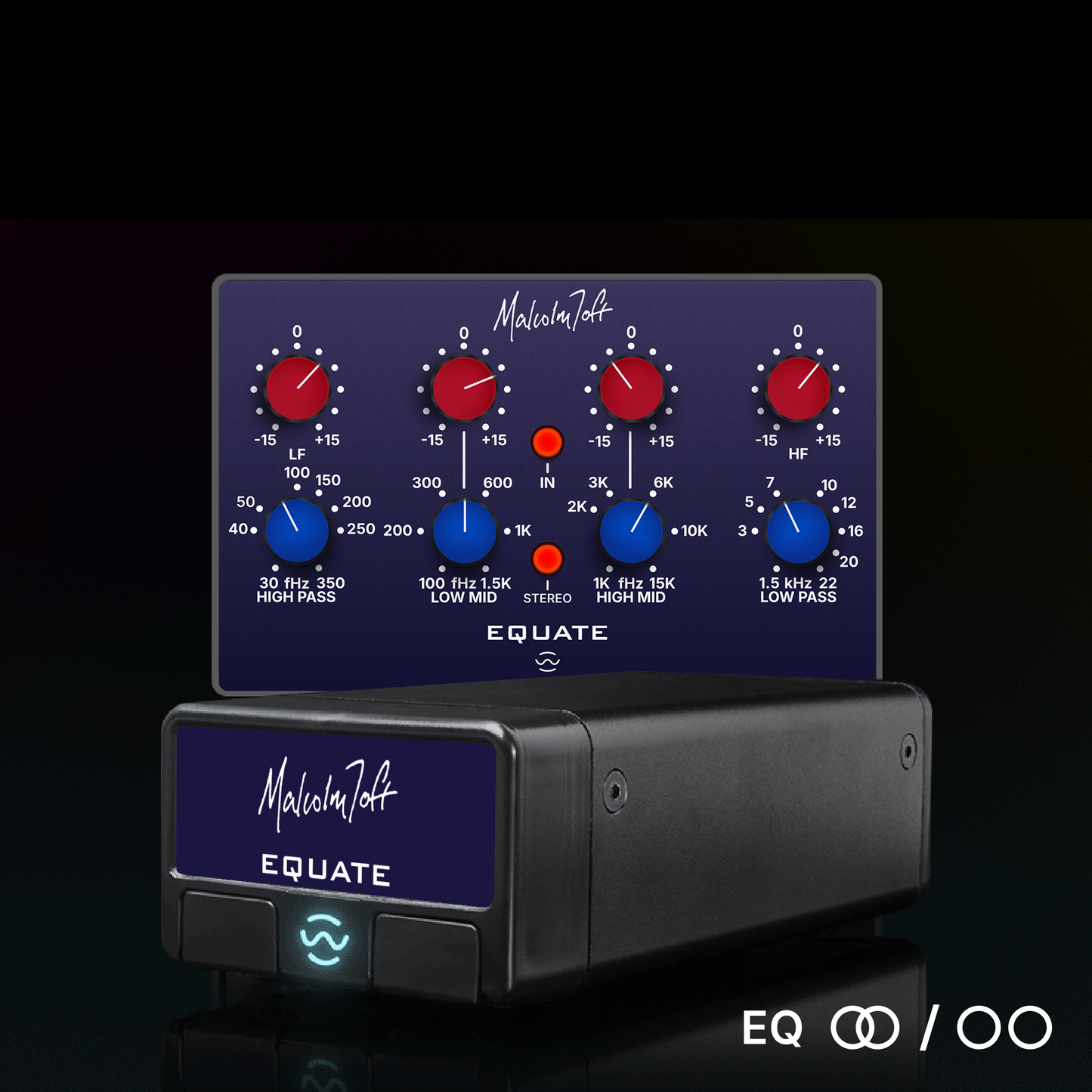

Malcolm Toft EQUATE SEPIA Module

Malcolm Toft EQUATE SEPIA Module

£600.00 GBP
£600.00 GBP
Sale Pricing Available Soon
Tax included.
The EQUATE provides a full 6-band EQ with High & Low pass filters, High and Low Shelf bands and 2 variable mid bands. Built by the industry legend Malcolm Toft, who has over 50 years of experience in the audio world, this module brings complete tonal control to your sound with a distinct analog warmth.

L6 Tech Specs

Power Supply AC (nominal): 100-240V 50/60Hz

Supply AC (limits): 90-260V

Redundant Power Supply: DC4-pin XLR 36V DC

Power Consumption: 115W Max

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage/Transport Temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions: 440mm x 400mm x 40mm

Rack Units: 1U

Mass: 6kg (13.3lbs) without Modules

Control Network Connection: 1x RJ45 Ethernet

USB Connections: 2

Bluetooth: Adaptor sold separately

Audio Input Connections: 6x XLR/TRS Combo Inputs (1-6) / 2x TRS Sockets (A&B)

Option Card Slots: 1

HXA0 Analog (Fixed) Option Card

Output Connector: D-SUB 25-pin

Output Channels: 8 (Fixed Assignment)

HXA1 Analog Option Card

Output Connector: D-SUB 25-pin

Output Channels: 8 (Assignable)

HXD1 AES Option Card

Audio Protocol: AES/EBU

Output Connector: D-SUB 25-pin

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)

HXM1 MADI Option Card

Digital Audio Protocol: MADI (AES10)

Connections: 1x SFP / 1x Word Clock (BNC)

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)

HXN1 DANTE Option Card

Digital Audio Protocol: DANTE

Connections: 2x Gigabit RJ45 Ethernet Ports (Primary/Secondary)

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)
