Karno

L6 1U 19" Rackmount Host for SEPIA

L6 1U 19" Rackmount Host for SEPIA

£2,159.00 GBP
£2,159.00 GBP
Sale Pricing Available Soon
Tax included.
Output Option

The first of the SEPIA hosts; a 1U 19" Rackmount, 6 slot unit with flexible I/O options to suit all professional workflows. Pre-order now to secure stock as soon as they become available.

L6 Tech Specs

Power Supply AC (nominal): 100-240V 50/60Hz

Supply AC (limits): 90-260V

Redundant Power Supply: DC4-pin XLR 36V DC

Power Consumption: 115W Max

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage/Transport Temperature: –20°C to +60°C (–4°F to +140°F)

Dimensions: 440mm x 400mm x 40mm

Rack Units: 1U

Mass: 6kg (13.3lbs) without Modules

Control Network Connection: 1x RJ45 Ethernet

USB Connections: 2

Bluetooth: Adaptor sold separately

Audio Input Connections: 6x XLR/TRS Combo Inputs (1-6) / 2x TRS Sockets (A&B)

Option Card Slots: 1

HXA0 Analog (Fixed) Option Card

Output Connector: D-SUB 25-pin

Output Channels: 8 (Fixed Assignment)

HXA1 Analog Option Card

Output Connector: D-SUB 25-pin

Output Channels: 8 (Assignable)

HXD1 AES Option Card

Audio Protocol: AES/EBU

Output Connector: D-SUB 25-pin

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)

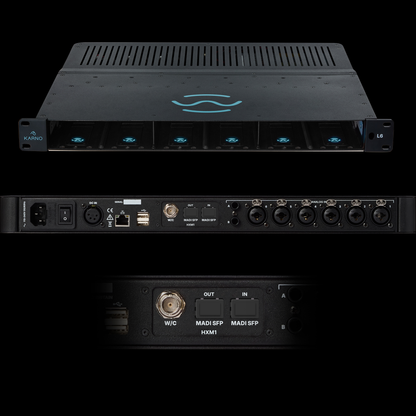

HXM1 MADI Option Card

Digital Audio Protocol: MADI (AES10)

Connections: 1x SFP / 1x Word Clock (BNC)

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)

HXN1 DANTE Option Card

Digital Audio Protocol: DANTE

Connections: 2x Gigabit RJ45 Ethernet Ports (Primary/Secondary)

I/O Per Card: 8 Channels Bi-Directional

Sample Rates: 48kHz/96kHz

Bit Depth: 16-bit/24-bit

Maximum Input Level: +28dBu (0dBu = 0.775Vrms)

Dynamic Range: 119dB (TBC)

THD: -106dB (TBC)

Frequency Response: 10hZ-40kHz (TBC)
