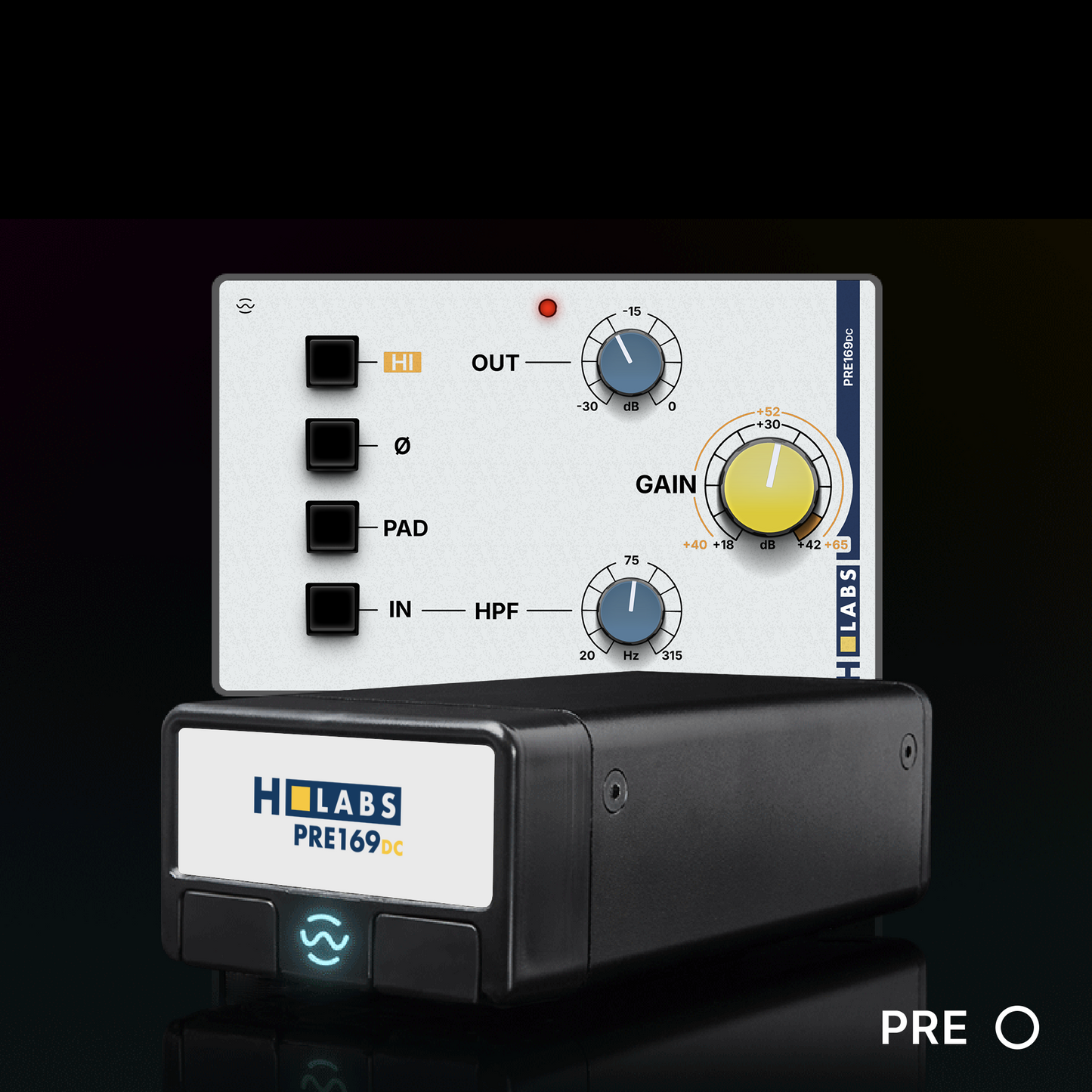

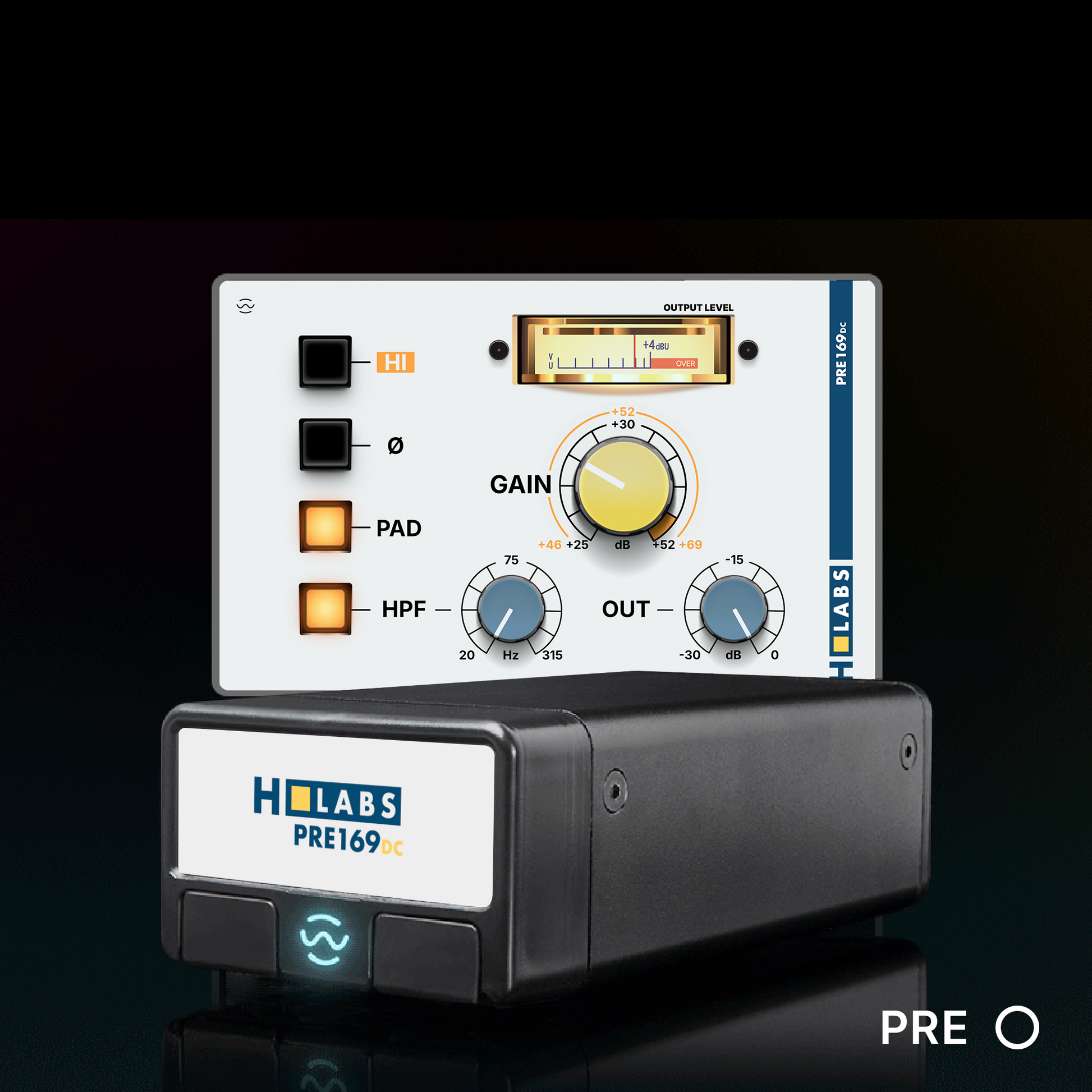

HLabs PRE169DC SEPIA Module
HLabs PRE169DC SEPIA Module
Couldn't load pickup availability
Inspired by the legendary Studer 169 mixing console, the PRE169DC's input stage is a near-perfect replication of the original Studer design and its fairly transparent sound with massive gain range. To add more fatness, we put a (BIG) Carnhill transformer in the output section, the same you can find in Neve 51-series console, all housed in a single-width module housing.
Share
Tech Specs
Tech Specs
• Channel Configuration: Mono
• Mic Preamp
• Max Gain: 67 dB
• Pad: -33 dB
• Output Level: 0 to -30 dB
• Phantom Power: +48 V
• Polarity Switch: Yes
• High-Pass Filter: 12 dB/octave, variable from 20 Hz to 315 Hz
• Input Transformer: Neutrik NTM-4
• Output Transformer: Carnhill VT24499
• Frequency Response: ±1 dB, 6.2 Hz to 25 kHz (1 kΩ load)
• Mic Input Impedance: 1.2 kΩ
• Equivalent Input Noise (EIN): -125 dBu @ max gain (Mic input)
