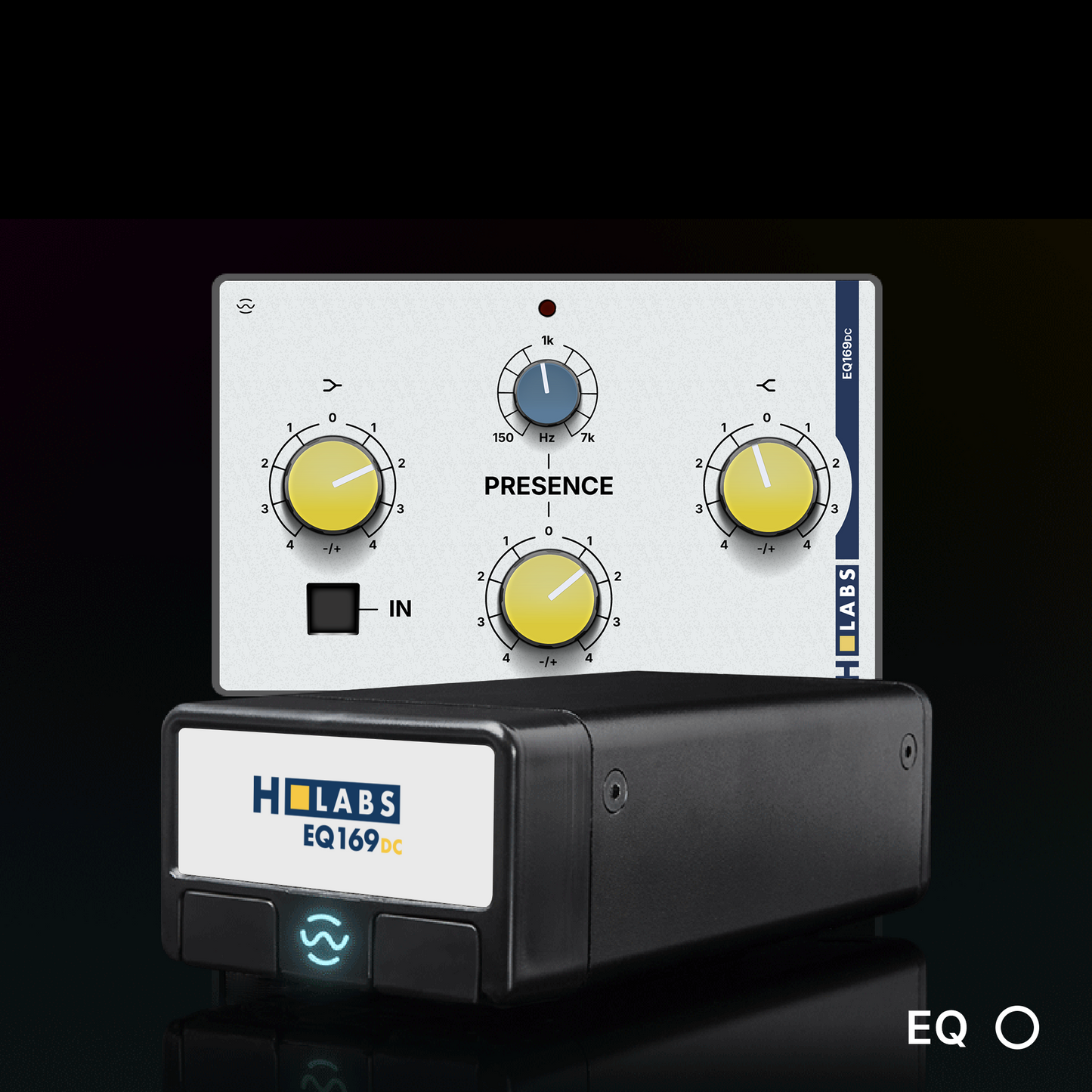

HLabs EQ169DC SEPIA Module
HLabs EQ169DC SEPIA Module
Regular price
£432.00 GBP
Regular price
Sale price
£432.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Inspired by the legendary Studer 169 mixing desk, the EQ169DC is a classic, yet very musical 3-band EQ with the original ±15dB high and low shelves and a semi-parametric (150-7,000Hz) "Presence" band.
Share
Tech Specs
Tech Specs
• Classic semi-parametric EQ based on the original Studer 169 console circuit
• High Shelf: ±15dB @ 20kHz
• "Presence" filter: ±11dB @ 150 to 7000Hz (continuously variable) - Q ≈ 1.0
• Low Shelf: ±15dB @ 20Hz
• Digitally controlled using premium digital potentiometers circuits
• Transformerless input & output for a transparent sound
• Max level (input & output): +22dBU
• Frequency response (1kΩ load): ±0.5dB from 5.4Hz to 25kHz
• SNR: >105dB (0.2% THD)
• Weight: 0.2kg | 0.44lbs
